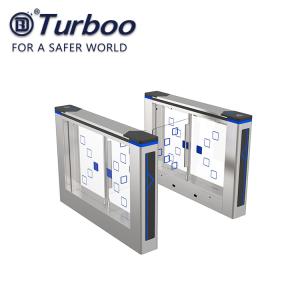

Optical Swing Barrier Gate Turnstile With Brushless Motor Wide Pass 900mm

Name: Optical Swing Barrier Gate Turnstile With Brushless Motor Wide Pass 900mm
Brand: Turboo
Price: 1 USD

China Optical Swing Barrier Gate Turnstile With Brushless Motor Wide Pass 900mm factory

Brand Name : Turboo

Model Number : A327

Certification : CE ISO9001

Place of Origin : Guangdong China (Mainland)

MOQ : 2 pcs

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000 units per month

Delivery Time : 15 days

Packaging Details : Wooden Case Package

Product Size : 1400*185*980mm

Pass Width : 900mm

Material : 1.5mm imported SUS 304 snow line Polish 400#

Top cover Material : Acrlic with SUS

Input Voltage : 100-240V

Working Voltage : 24V

Pass Rate : 35-40 persons/minute

Operating time : 0.2 Seconds

Infared Sensro : 5 pairs

MCBF : 5,000,000 cycles

Motor : Brushless

Contact Now

Optical Swing Barrier Gate Turnstile with Brushless Motor Wide Pass 900mm

Description

A327 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.

Model Number:	A327
Product Size:	1400185980mm
Pass Width:	900mm
Net Weight:	69kg
Thickness:	1.5mm
Material:	1.5mm imported SUS 304 snow line Polish 400#
Top cover Material:	Acrlic with SUS
Filling Panel Material:	10mm Acrylic
Arm Material:	8mm Tempered Glass
Driver:	Brushless Motor
Infrared Sensor:	6 pairs
Pass rate:	35-40p/m
Power Supply:	100-240V(AC)
Operational Voltage:	24V(DC)
Max Power Consumption:	35w
Frequency:	50-60hz
Working Temperature:	-25 to +70 ℃
MCBF:	5,000,000cycles

OPERATING MODES:

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

Our advantage:

1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Meanwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
